Progressive Cavity Pump Manufacturers in Mumbai
Top Quality Progressive Cavity Pump Manufacturers & Providers in Mumbai
Heinsenberg Fluid Handling is the leading Progressive Cavity Pump manufacturers in Mumbai, traders and suppliers in Mumbai. We are able to design and supply broad array of pumps to many industries on scheduled time. Thus, we are able to maintain our good position in the industry. All our products are made up of the highest quality materials and ensure their longer life. As progressive cavity pump suppliers, our pumps are a very durable pumping system that provides maximum performance and reliability.
Concept of Progressive Cavity Pump:

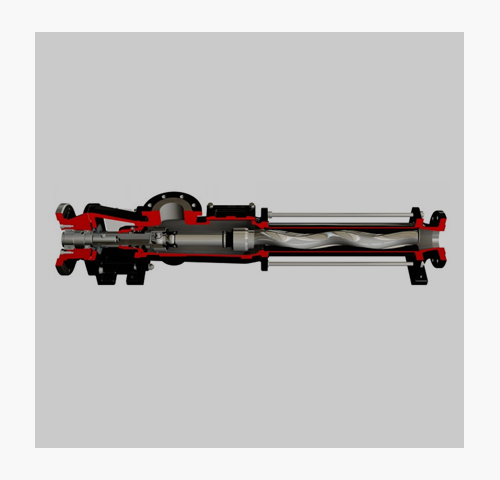

A Progressive Cavity Pump is a positive displacement pump, which is made up of a rotor and stator. The metal rotor rotates the stator with the help of the chain and starts filling the cavities with equal quantities of liquid, which then get pushed out through the pump outlet. The rotor within the pump spins within the stator, in turning, the cavities of the stator are filled with process media and are pushed towards the output of the pump under pressure. The fluid pockets contain a defined volume that determines the volumetric rate of flow of the pump, which is directly proportional to rotor speed and produces low shear levels and minimal to no pulse.
Types of Progressive Cavity Pump:
We are progressive cavity pump suppliers in Mumbai, and provide different types of it to suit numerous applications and customers’ requirements. Here are some of these types mentioned.
- Novarotor Progressing Cavity Pumps: They are used for handling any fluid, whether highly viscous or containing solids. The pumps have a flow rate that is permanent and non-pulsating, thus convenient for accurate dosing and transfer applications. Novarotor has engineered tough and adaptable pumps for such areas as sewage treatment, food processing, and chemical handling, putting a premium on reliability and performance under rigorous conditions.
- Progressive Cavity Single Screw Pump: We provide progressive cavity single screw pump which consists of a single helical rotor rotating through a helical stator generates a progressive cavity along its length, which carries liquid from inlet to outlet. The DN and JN series differ in terms of the way the pump is fitted to the drive. These pumps are appropriate for pumping non-viscous and viscous products with or without solids of any type, they are a perfect choice for anyone requiring a standard product with high-end technology with unmatched cost advantages in today's single screw pumps market.
- Industrial Progressive Cavity Pump: Our Industrial Progressive Cavity Pump is part of a three-strong family, namely the DN JN and FN. It is international standards compliant and suitable for various applications. The pump is convenient for a wide variety of industrial pumping applications with and without solids for viscous and non-viscous fluids. High reliability, performance, and flexibility are achieved through the modular design. Our offered pumps are therefore excellent choices for low flow and dosing applications.
- Hygienic Progressive Cavity Pump: It has a complete sanitary design that meets EHEDG and 3A standards for maximum sanitisation. These pumps are top rated for "Clean In Place" and "Sterilising In Place." Pump geometry has been specifically designed to allow drainage and avoid dead pockets. All components are manufactured to the highest finish and cleanliness. The fittings available include DIN 11851, Clamp ISO 2852, Clamp ASME-3A, Clamp DIN 32676, RJT, SMS 1145, and lastly Garolla and Macon for the wine industry.
Technical Specifications of Progressive Cavity Pump:
Find the attached technical sheet containing specifications of each type of progressive cavity pump!
| Specifications | Novarotor Progressing Cavity Pumps | Progressive Cavity Single Screw Pump | Industrial Progressive Cavity Pump | Hygienic Progressive Cavity Pump |
|---|---|---|---|---|
| Model Number | DN, FN | DN | DN, JN or FN | DXO and DXC |
| Material Used | SS316L | SS316L | SS316L | Stainless Steel |
| Flow | Up to 110m³/h | 300m³/h | Up to 680m³/h | 300m³/h |
| Pressure | Up to 24 bar | 32 bar | Up to 24 bar | Up to 32 bar |
| Temperature | -40°C up to 150°C | 150°C | -40°C up to 150°C | 150°C |
| Power Source | Electric | Electric | Electric | Electric |
| Voltage | 415V | 415V | 420V | 415V |
| Applications | Chemical, Waste water | Agricultural | Water Treatment, Industrial Sludge | Food, Pharmaceutical |
Key Features of Progressive Cavity Pump:
Our progressive cavity pump comes with many features which are given below.
- Smooth Flow: Progressive cavity pumps offer non-pulsating and smooth flow, making them ideal for shear-sensitive liquids like food products, chemicals, and pharmaceutical solutions.
- High-efficiency suction lift: provided with magnificent self-priming capabilities requires no external means to accomplish pumping viscous and non-flowing liquids from deep tanks or reservoirs.
- Handling of viscous and abrasive fluid: The progressive cavity pumps can easily flow thick, abrasive, and multiphase fluids. The rotor-stator design allows it to endure the tough stresses of any industrial application.
- Precise: These pumps are ideal for accurate dosing and controlled fluid transfer applications across the oil & gas, food processing, and wastewater treatment sectors because of their linear flow characteristics.
- High Suction: Due to high suction-lift generating and high-pressure capabilities, progressive cavity pumps transfer liquid efficiently over long duty distance and on very high surfaces, thus minimizing multiple pumping stations.
Applications of Progressive Cavity Pump:
We being progressive cavity pump traders in Mumbai, supply pumps to the industries for fluid transfer. Some applications of it are given below.
- Oil & Gas Industry
- Waste Water Treatment
- Food & Beverage Industry
- Chemical & Petrochemical
- Industrial Sludge
Being Progressive Cavity Pump manufacturers in Mumbai, traders and suppliers in Mumbai, at Heinsenberg Fluid Handling, we focus on quantity with quality. Our technical support team is always ready to help customers by providing products with proper services in Mumbai. Thus, contact us now and get the high-quality progressive cavity pump in Mumbai!
