Stuffing Box
- Fluoropolymer-lined stuffing box accommodates single and double mechanical seals without modification.
- Pull-out design provides safe, simple and quick pump assembly and disassembly.
SEL Series
ISO End-Suction Centrifugal Pumps
Request a QuoteRequest a Quote
SEL Series

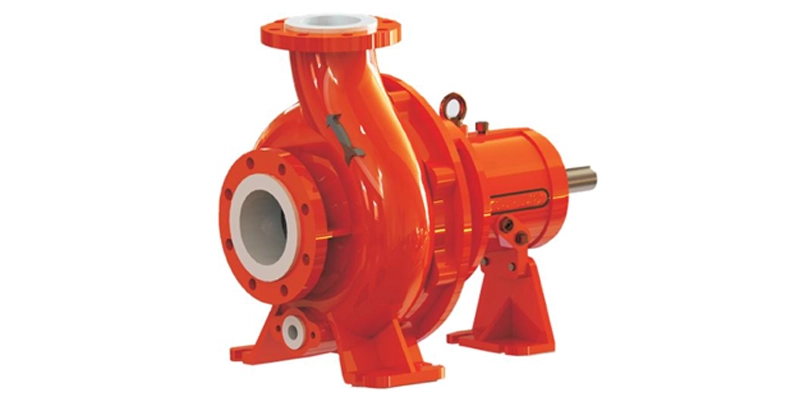

SEL Series pumps are fluoropolymer-lined, horizontal, back pull-out and end-suction centrifugal pumps. The dimensional and design criteria conform to ISO 2858 and ISO 5199. Fluoropolymer-lined pumps are an excellent choice for hazardous, corrosive and toxic media.
1000 m³/hrMaximum capacity
95 mMaximum head
16 barWorking pressure
01
Performance
Technical Data
| Operating Frequency | 50 Hz |
|---|---|
| Capacity (Q) | Maximum 1000 m³/hr |
| Head (H) | Maximum 95 m |
| Motor Power (P) | Maximum 450 kW |
| Maximum Working Pressure | 16 bar |
| Maximum Specific Gravity (SG) | 2 |
| Minimum Continuous Flow | 2.5 m³/hr |
| Maximum Working Temperature | FEP: 180°C, PFA: 200°C, PVDF: 110°C |
| Suction & Delivery Connection | ANSI B16.5 – Class 150 |
| Shaft Seal | Single & double mechanical seals |
| Bearings | Rolling element bearings |
| Lubrication | Oil |
| Motor Compatibility | IS 1231, IEC 72-1, NEMA |
02
Industries
Applications
- Steel plants, pickling plants and scrubbing
- High-temperature, hazardous and toxic chemicals
- Pharmaceutical industries
- Acid and alkaline chemicals in chlor-alkali industries
03
Engineering
Construction Features
Shaft & Bearing
- Heavy-duty shaft design for minimum deflection.
- Maximum 0.05 mm deflection at the stuffing box under maximum load.
- Large-capacity oil sump improves heat transfer, keeps bearings cooler and extends bearing life.
- Arrangement for the semi-open impeller enables front-clearance adjustment for optimum hydraulic performance.
- O-ring seal between the bearing housing and lantern prevents lubricating-oil leakage.
Volute Casing
- Centre-line discharge volute with fluoropolymer-lined construction provides pressure capability, efficiency and smooth media transfer from the impeller to delivery.
- Thick-wall polymer moulded inside metal armour provides strong support at high temperatures.
- Top-discharge, self-venting, back pull-out design.
- Optimum hydraulic design.
- Drain-plug provision allows easy, safe drainage and helps maximize pump life.
Impeller
- Hydraulically optimized semi-open radial impeller.
- Axial forces are balanced by balancing holes and back vanes.
- Reverse locking of impeller and shaft prevents loosening from incorrect rotation and ensures maximum torque transmission.
04
Configuration
Mechanical Seal Options
- Available in single and double mechanical-seal options.
- The stuffing box can accommodate applicable API seal plans.
05
Selection Guide

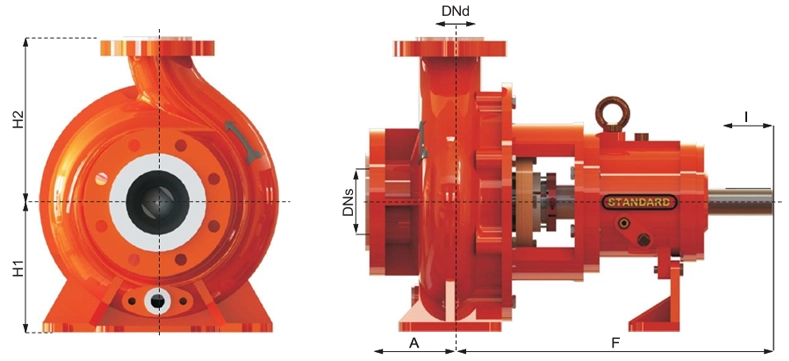

Pump Dimensions
| Models | DNs | DNd | A | F | H1 | H2 | L |
|---|---|---|---|---|---|---|---|
| 50x32-125 | 50 | 32 | 80 | 385 | 112 | 140 | 50 |
| 50x32-160 | 50 | 32 | 80 | 385 | 132 | 160 | 50 |
| 50x32-200 | 50 | 32 | 80 | 385 | 160 | 180 | 50 |
| 65x40-160 | 65 | 40 | 80 | 385 | 132 | 160 | 50 |
| 80x50-200 | 80 | 50 | 100 | 385 | 160 | 200 | 50 |
| 80x50-250 | 80 | 50 | 125 | 500 | 180 | 225 | 50 |
| 80x65-160 | 80 | 65 | 100 | 385 | 160 | 200 | 50 |
| 100x65-250 | 100 | 65 | 125 | 500 | 200 | 250 | 80 |
| 125x80-315 | 125 | 80 | 125 | 530 | 250 | 315 | 80 |
| 125x100-315 | 125 | 100 | 140 | 530 | 250 | 315 | 110 |
| 150x125-315 | 150 | 125 | 140 | 530 | 280 | 400 | 110 |
| 150x125-400 | 150 | 125 | 140 | 530 | 315 | 400 | 110 |
| 200x150-315 | 200 | 150 | 160 | 670 | 315 | 400 | 110 |
| 250x200-400 | 250 | 200 | 180 | 625 | 355 | 500 | 110 |
| 300x250-315 | 300 | 250 | 250 | 625 | 400 | 550 | 110 |
| 300x250-400 | 300 | 250 | 200 | 700 | 375 | 550 | 140 |
All dimensions are in millimetres unless otherwise specified.
